Transit Shelters



Click To Enlarge

6 Series

MODEL SIZE CAPACITY WINDSCREEN
6-2 14’7″x5′ 8-9 No
6-2WS 14’7.5″x5′ 8-9 Yes

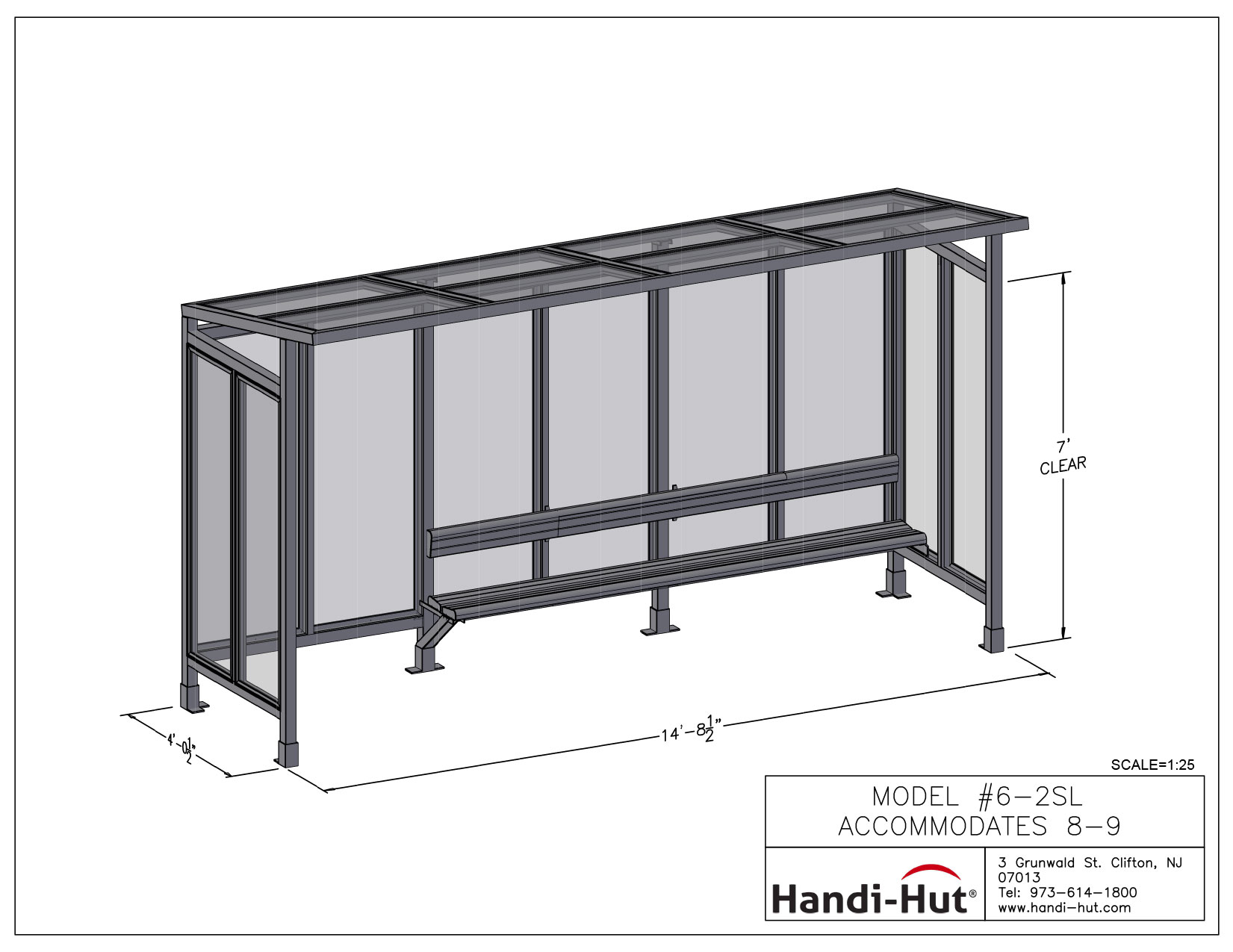

6-2SL 14’7.5″x4′ 8-9 No
6-3 14’7.5″x7’5″ 12-14 No
6-3WS 14’7.5″x7’5″ 12-14 Yes
6-4 14’7.5″x9’10.5″ 15-18 No
6-4WS 14’7.5″x9’10.5″ 15-18 Yes
6-6 14’7.5″x14’7.5″ 24-28 No
6-6WS 14’7.5″x14’7.5″ 24-28 Yes

All shelters include a bench and backrest

Roof Styles Click Roof Style for Details and CAD Drawings
Dome

Dome

Flat

Flat

Barrel

Barrel

Sloped<br>Available only with 3 Walls (Open Front)

Sloped
Available only with 3 Walls (Open Front)

Poly Hip

Poly Hip

Poly Gable

Poly Gable

Standing Seam Hip

Standing Seam Hip

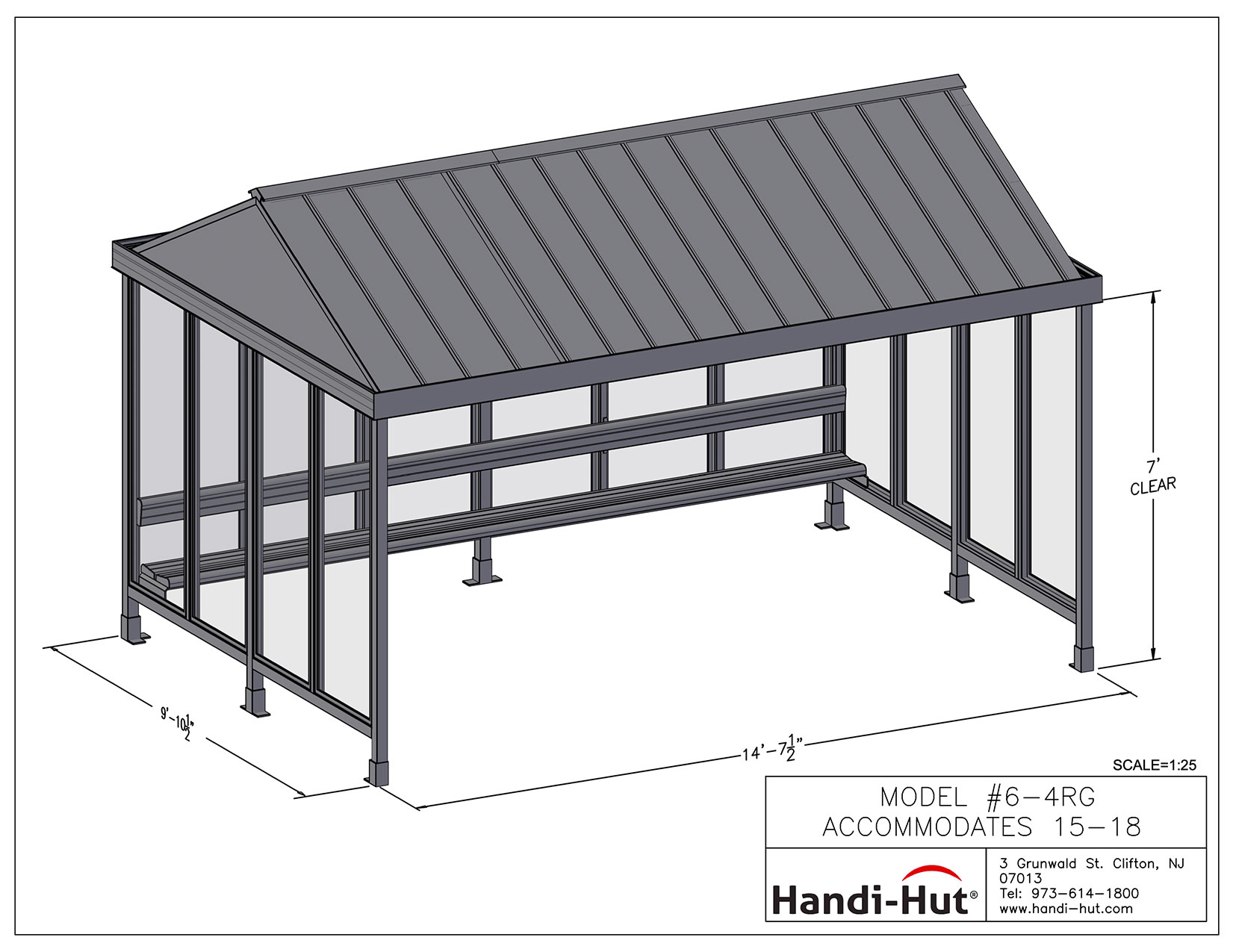

Standing Seam Gable

Standing Seam Gable

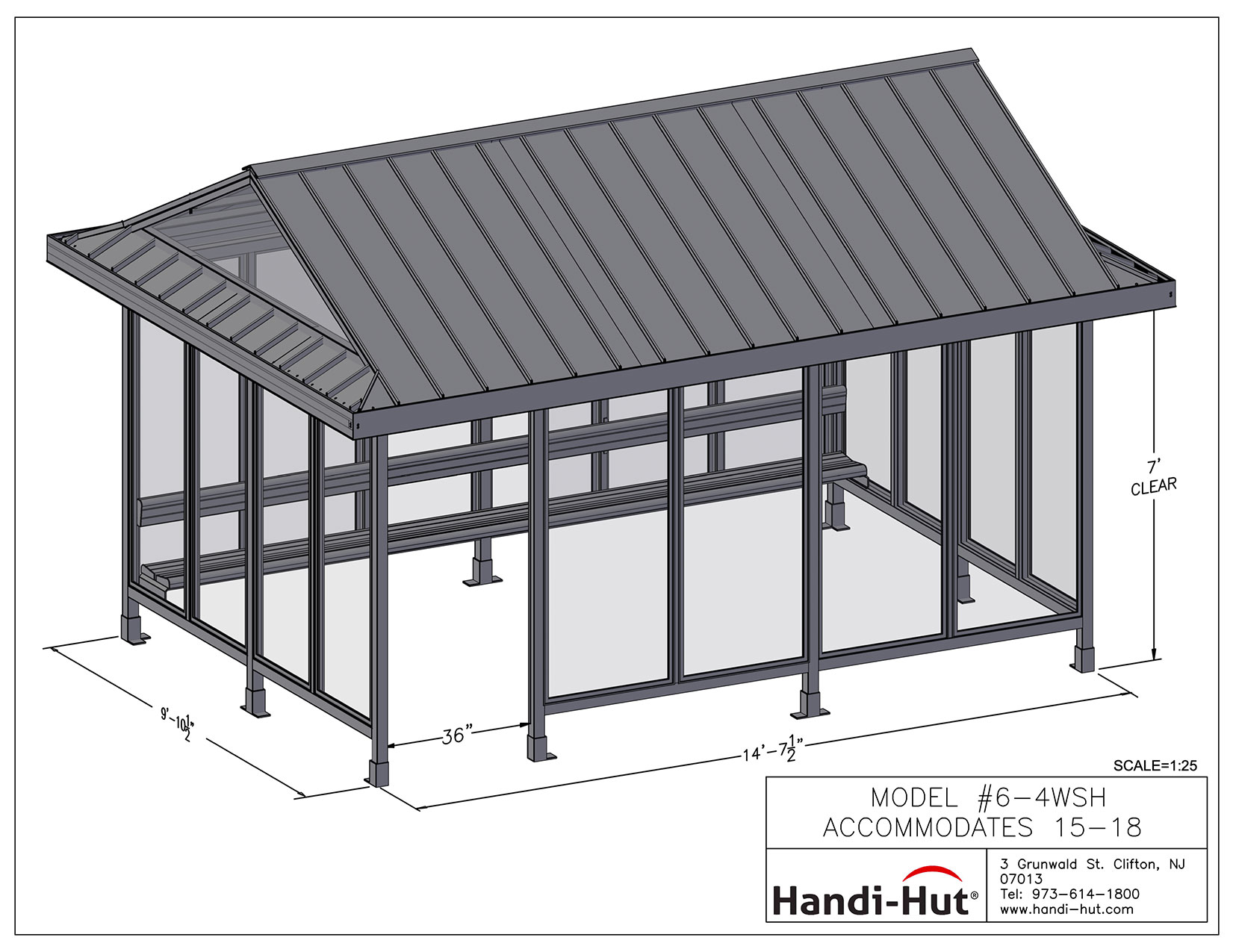

Historical

Historical

Options

Aluminum Finishes

Anodized Finishes

  • Clear Anodized
  • Dark Bronze Anodized


Powder Coat Colors*
Available upon request

Roof Materials and Colors

1/4″ Twin Wall Polycarbonate (Barrel, Poly Gable, Poly Hip & Sloped)

  • Clear*
  • White
  • Bronze Tinted

Panel Colors



Standing Seam Aluminum Decking (Standing Seam Hip, Standing Seam Gable and Historical)

  • Black
  • Dove Gray

Standing Seam Aluminum Decking



Endurex 300 (Flat)

  • Black
  • Silver

Endurex 300



¼” Translucent Acrylic (Dome)

  • White
Dome Roof Image







Wall Glazing

  • 1/4″ Clear Tempered Safety Glass


Additional Options*

  • 1/4″ Bronze Tinted Tempered Safety Glass
  • Clear Polycarbonate
  • Clear Acrylic
  • Clear Abrasion Resistant Polycarbonate
  • Perforated Aluminum
